This article guides you through the programming of a Honeywell 7190g scanner for Windows 10 and Windows 11
Overview
For a scanner to work correctly with Gladstone360 or Plus2 it must be seen by the Windows operating system as a serial com port. To convert a USB connected 7190g scanner to a serial com port device two steps are needed.
- A software driver needs to see the scanner and create a virtual com port in Windows device manager
- The scanner must be configured as a serial device by scanning a Honeywell Programming Barcode
The steps below will guide through this process.
Software Driver
For Windows 10 and Windows 11 Operating System no additional driver needs installing. The inbuilt driver within the windows operating system should identify a correctly configured scanner and create a com port automatically.
Scanner Configuration
- Plug in the scanner to an available USB port
- Wait for the operating system to identify the scanner and initialisation to complete
(30 seconds approximately) - Scan the USB Serial Programming Barcode shown here
click here for a downloadable pdf containing the barcode
The scanner will automatically reconfigure itself as a serial com port device.
During the process the device will automatic reset a few times indicated by flashing LEDs and a series of Beep Tones (60 seconds approximately)- Once complete unplug the scanner to power it off
- Waiting 10 seconds for the Windows Operating to identify the device is disconnected
- Plug the scanner back in to the same USB port originally used
- Wait for the Windows Operating System to identify the scanner again
(30 seconds approximately) - The setup is now complete
Post Installation Checks

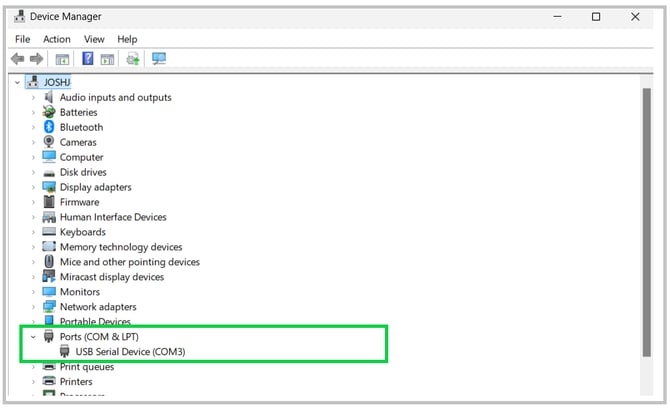

To double check all is installed correctly, follow these steps;- Open Windows Device Manager
- Expand the device list and open Ports (COM & LPT)
- The configured scanner using the inbuilt windows driver will appear as a
USB Serial Device (COM#).
The numbers in brackets denotes which Com Port the operating has assigned to this device
